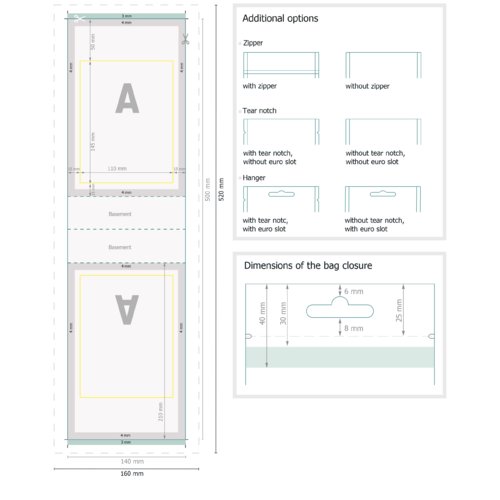

Artwork information Doypacks, 500 ml, 4/0
- Data format (incl. 3 mm bleed): 16 x 52 cm
- Trimmed size: 14 x 50 cm
- Product dimensions: 8 (L) x 14 (W) x 21 (H) cm
- Please pay attention to the following aspects when creating the artwork for doypacks:
- Do not rename or change the colours of the die lines or colour swatches in the templates because otherwise production will not be possible.
- No bleed is needed on the left and right edge since we only produce with a separating cut.
- Position elements with a distance of 3 mm to the edge if they are not continued at the same height on the opposite side.
- Tip: Use similar colours on the edges so that any offset will not be noticeable. Minimal white edges (< 5 mm) do not constitute grounds for a complaint.
- Resolution: 300 dpi
- Create bleed (3 mm) at the opening and the bottom; none is needed at the sides
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA51 (PSO coated v3) for coated paper, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Comments will be deleted and not printed
- Form field content will be printed
Product details
- four colour print on the outside, bottom blank
- easy to fill
- all-over printed as information and/or advertising space
- seal in flavour, food-safe
- tearproof, heat-sealing stand-up pouches
- suitable for food as well as non-food products
- Contents are sealed in the packaging and protected from moisture
- seal: with and without zipper
- available with and without tear notch and/or euro slot
- especially sturdy thanks to oval sealed bottom
- seal in flavour, particularly well suited for finely ground and powdery products
- provide protection against air, moisture and UV radiation
- low storage and transport costs
- delivery: space-saving, flat and open
- Note: There may be price fluctuations due to a shortage in material
- Capacity: 500 ml
