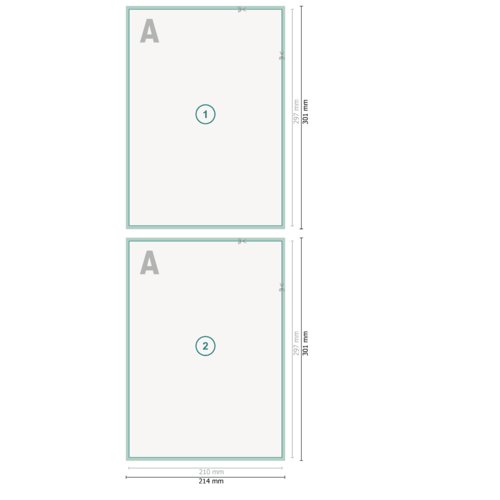

Artwork information NCR pads, portrait, A4
- Data format (incl. 2 mm bleed): 21,4 x 30,1 cm
- Trimmed size: 21 x 29,7 cm
- Resolution: 300 dpi
- Include a surrounding trim of 2 mm, important information should be at least 4 mm from the edge of the final format size
- Fonts must be completely imbedded or converted to curves
- colour mode: CMYK, FOGRA52 (PSO uncoated v3 FOGRA52) for uncoated paper
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Comments will be deleted and not printed
- Form field content will be printed
Product details
- Four-colour print on the front, reverse blank (4/1)
- top sheet: 4/1 colours (four colour on the front, reverse black printed), reverse: 1/0 colours (front page black, reverse unprinted)
- paper quality varies between the common paper weight of 60 gsm and up to 90 gsm
- the position of the adhesive binding depends on the reading direction and the layout orientation

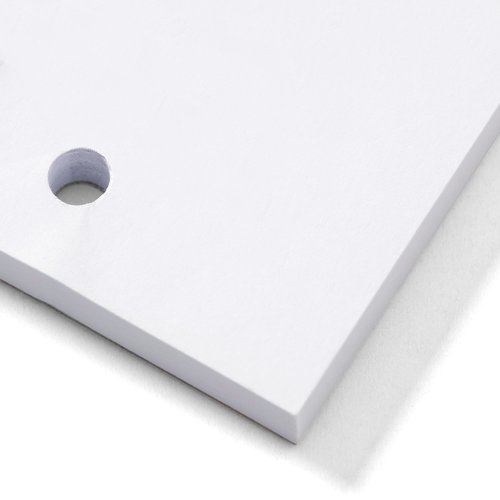

- the position of the punched holes depends on the reading direction and the layout orientation
- Note: The optional punch holes are in accordance with ISO 838.
- Numbering:
- size of the numbering field: min. 24 x 6 mm
- distance to the edge min. 5 mm
- font size: 12 pt
- font colour: black
- format: six-digit sequence of numbers; no letters or special characters
- position: freely selectable; applied on one side, consecutive numbering
- alignment: horizontal or vertical
- only one numbering is possible per set of non-carbon copy paper.
- In addition to your artwork files, please upload a view file to illustrate the numbering positions and which is the starting number. (Example: ""view_only_.pdf"")."
