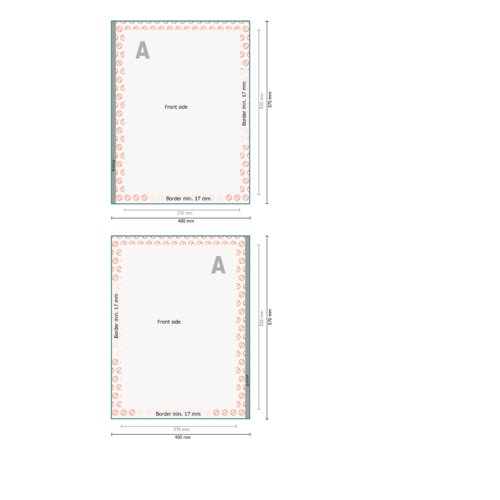

Artwork information Newspaper printing, Broadsheet XXL
- Trimmed size: 37 x 53 cm
- Printable area: 37 x 53 cm
- Special requirements for creating the artwork:

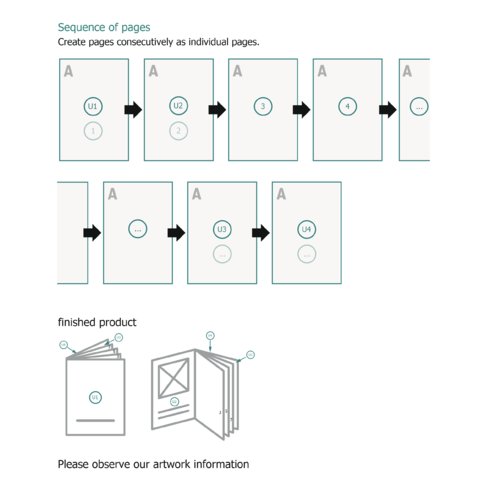

- Arranging the pages:
- we impose the inside pages of the inside, i.e. arranging and positioning the pages on the printed sheet
- we will need a PDF file with consecutive single pages
- if you work in a layout program with spreads, please export them as consecutive single pages afterwards
- Note: 32 inside pages equal 16 sheets (each with a front and a reverse side)
- Arranging the pages:
- Resolution: 300 dpi
- Include a surrounding trim of 15 mm, important information should be at least 5 mm from the edge of the final format size
- Fonts must be completely imbedded or converted to curves
- Colour mode: CMYK as with ISO12647-2:2004 (ISO newspaper 26v4)
- Maximum colour application of 300 %
- We will not check for spelling and/or typographical errors
- We will not check for overprint settings
- Transparencies created with CorelDRAW must be reduced
- Comments will be deleted and not printed
- Form field content will be printed
Product details
- Four-colour print on the front and reverse (4/4)
- different packagings to choose from:
- in bulk on pallets
- criss-cross bundles packaged in plastic film on pallets
